Sector 52



Sector 52 Information

For full data release notes see: DNR76. For a list of TIC IDs with noted issues, see this list.

Sector Summary

  • Sector dates: May 19 to June 12 2022
  • Pointing: Northern hemisphere
  • Days of Science Data Collection: 23.30
  • Days of Paused Data Collection: 1.14



    • Spacecraft Pointing (deg)

    RA dec roll
    Spacecraft 266.36 61.82 343.14

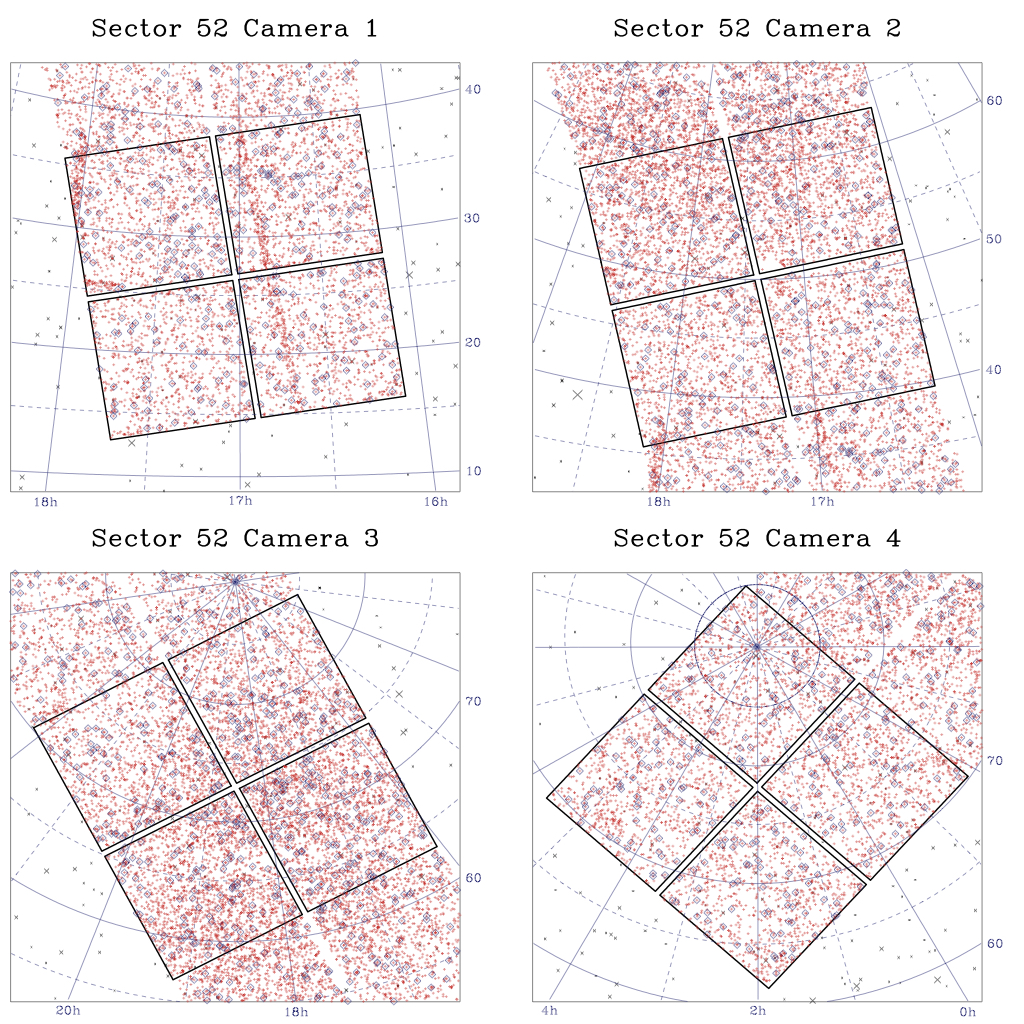

    Camera 1 255.37 26.58 81.19
    Camera 2 260.96 50.2 77.65
    Camera 3 278.24 72.97 242.12
    Camera 4 30.09 78.17 131.93



    Orbit Summary

    Orbits Dates (UTC)

    Start - End

    		 Cadence #

    Start - End

    		 Momentum dumps
    111 2022-05-19 - 2022-05-30 1073646 - 1082049 1
    112 2022-05-31 - 2022-06-12 1082871 - 1091247 1



    Sector Notes

    Noted Issue Description
    Spacecraft pointing Sector 52 consists of observations of the northern ecliptic hemisphere. The pointing was set at +85 degrees in ecliptic latitude so that Camera 2 and Camera 3 straddle the ecliptic pole. Camera 4 alone was used for guiding in both orbit 111 and 112.
    Scattered light The Earth comes very close to the corner of the FOV of Camera 1 in the early part of both orbit 111 and orbit 112: the resulting scattered light saturates the CCD detectors in Camera 1.
