Sector 49



Sector 49 Information

For full data release notes see: DRN71. For a list of TIC IDs with noted issues, see this list.

Sector Summary

  • Sector dates: February 26 to March 25 2022
  • Pointing: Northern hemisphere
  • Days of Science Data Collection: 25.88
  • Days of Paused Data Collection: 0.97

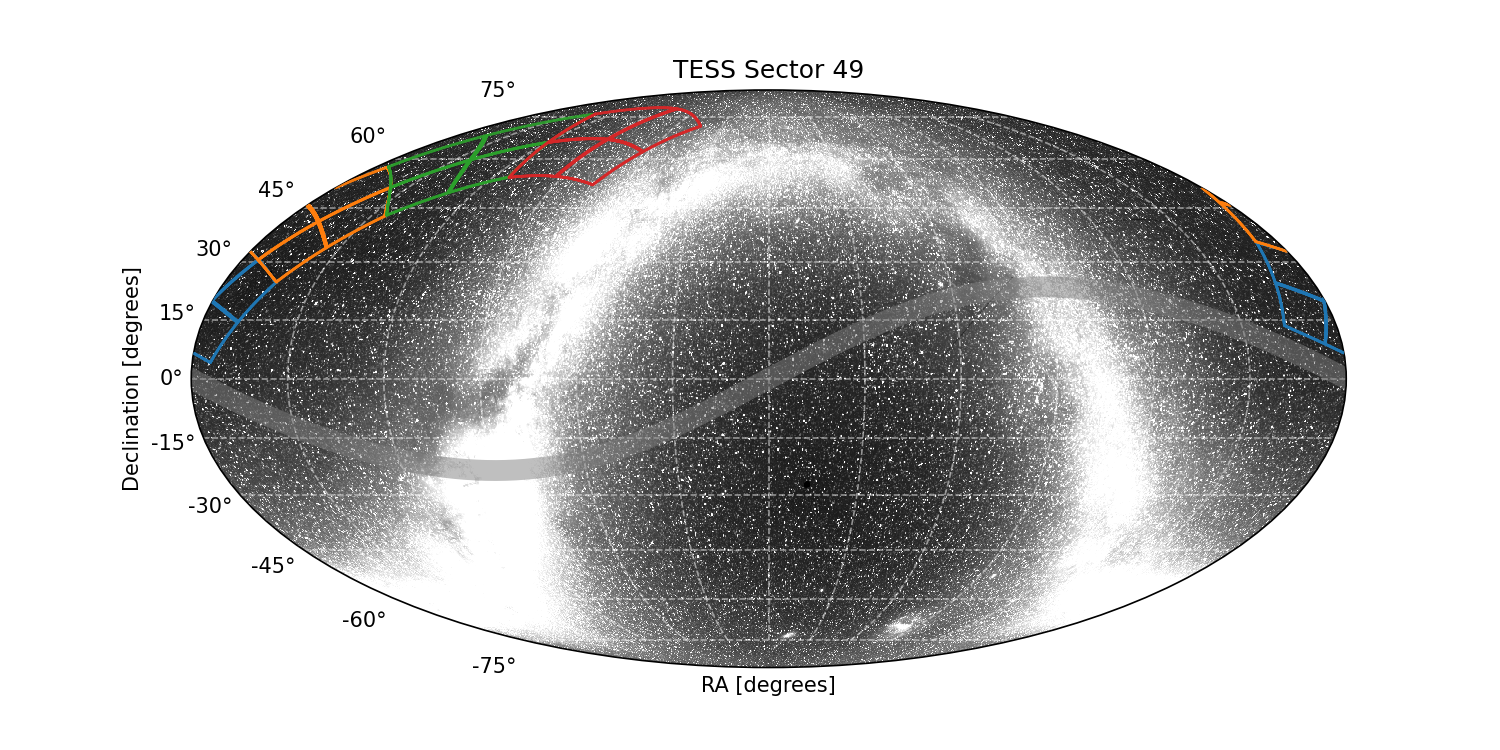

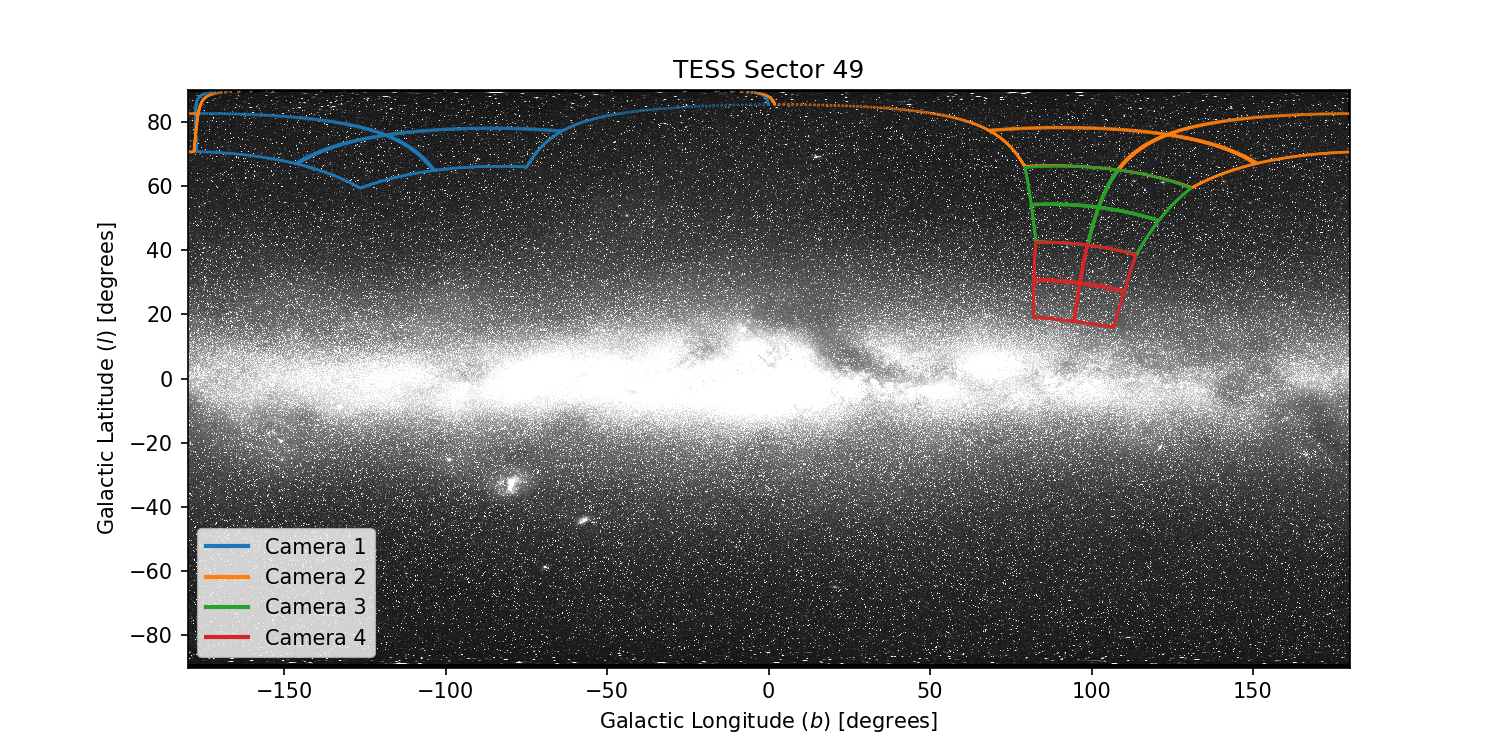

    • Spacecraft Pointing (deg)

    RA dec roll
    Spacecraft 202.64 50.95 321.35

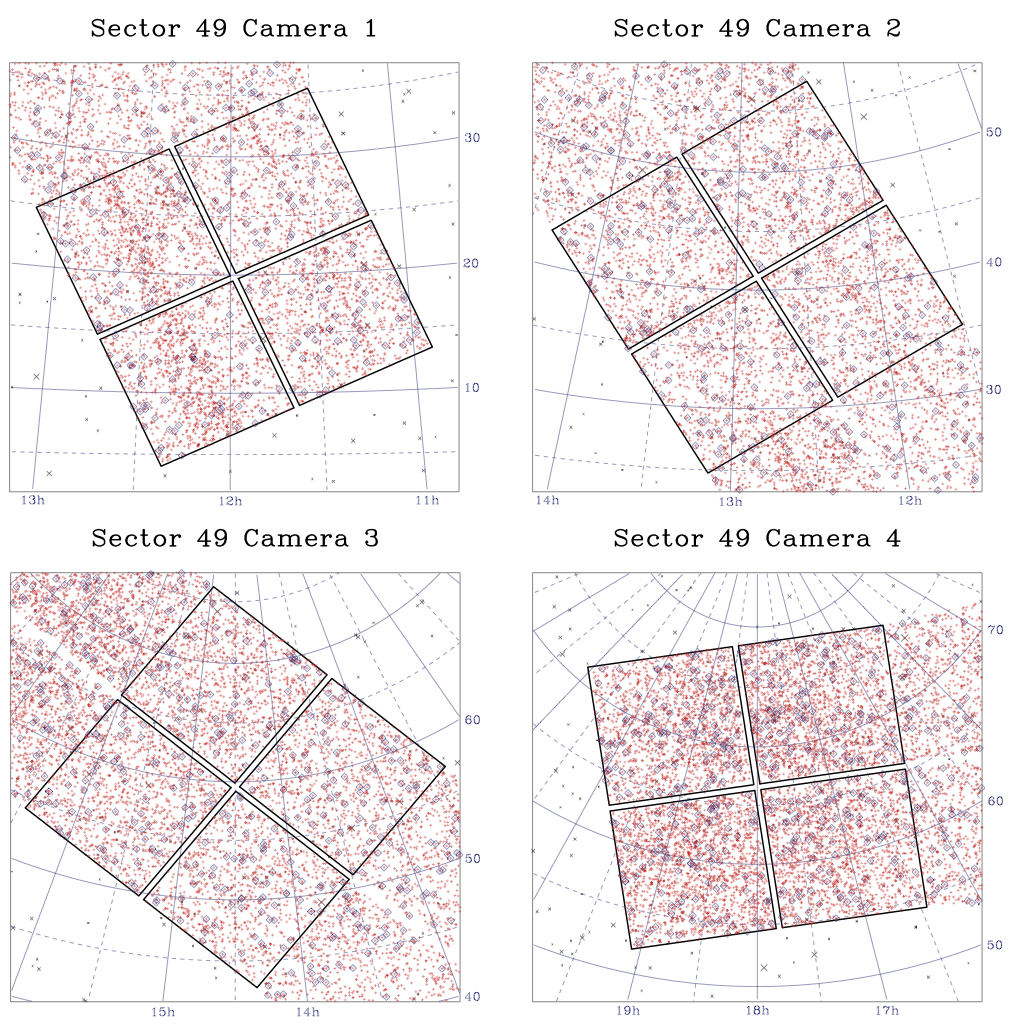

    Camera 1 179.67 19.82 65.28
    Camera 2 192.72 41.1 58.53
    Camera 3 217.48 59.54 219.1
    Camera 4 270.0 66.56 171.55



    Orbit Summary

    Orbits Dates (UTC)

    Start - End

    		 Cadence #

    Start - End

    		 Momentum dumps
    105 2022-02-26 - 2022-03-11 1015209 - 1024552 1
    106 2022-03-12 - 2022-03-25 1025249 - 1034539 1



    Sector Notes

    Noted Issue Description
    Spacecraft pointing Sector 49 consists of observations of the northern ecliptic hemisphere, with Camera 4 pointed near the north ecliptic pole. Camera 4 alone was used for guiding in both orbits.
    Scattered light At the start of orbit 105, the Earth crosses through Camera 1, saturating the CCD detectors and/or causing strong glints. At the start of orbit 106, the Earth and then the Moon moves through Camera 1, saturating the detectors and causing strong glints and scattered light signals in Cameras 1 and 2.
