Sector 43



Sector 43 Information

For full data release notes see:DRN62. For a list of TIC IDs with noted issues, see this list.

Sector Summary

  • Sector dates: September 16 to October 11 2021
  • Pointing: Ecliptic
  • Days of Science Data Collection: 23.684
  • Days of Paused Data Collection: 1.05

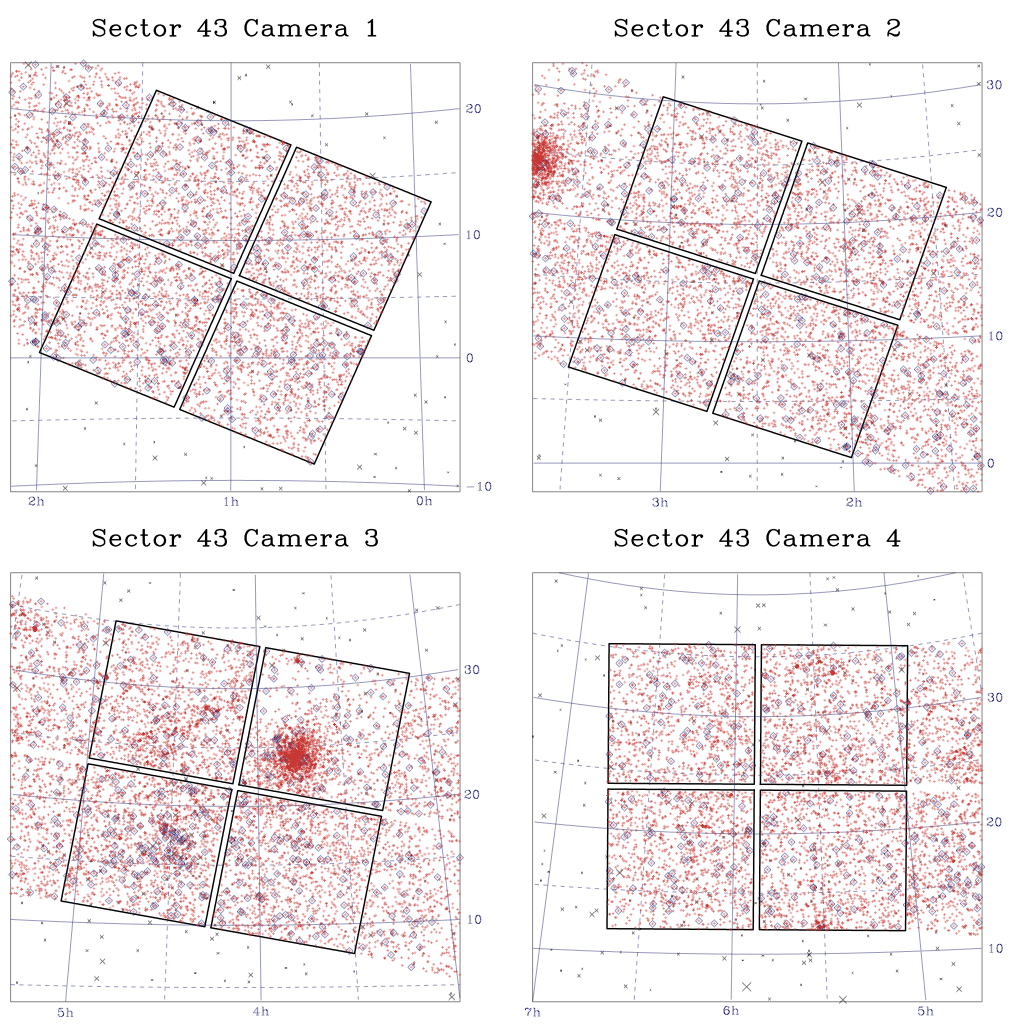

    • Spacecraft Pointing (deg)

    RA dec roll
    Spacecraft 49.53 18.97 284.96
    Camera 1 14.64 6.87 23.04
    Camera 2 37.49 15.5 18.54
    Camera 3 62.01 21.64 190.61
    Camera 4 87.95 23.99 180.4



    Orbit Summary

    Orbits Dates (UTC)

    Start - End

    		 Cadence #

    Start - End

    		 Momentum dumps
    93 2021-09-16- 2021-09-28 897629 - 906244 1
    94 2021-09-29 - 2021-10-11 906999 - 915432 1



    Sector Notes

    Noted Issue Description
    Spacecraft pointing Sector 43 consists of observations of the ecliptic plane. For ecliptic pointings, the antisolar point is set towards the edge of Camera 1 (nearest Camera 2), and Cameras 2, 3, and 4 are aligned parallel to the ecliptic plane in the westward direction. Camera 4 alone was used for guiding in orbits 93 and 94 of Sector 43. Outside of these times, strong scattered light signals are present when the Moon or Earth are near the camera fields of view.
    Scattered light In Orbit 93, the Moon crosses the fields of view of all cameras (one at a time). The Moon saturates CCD detectors during these times. Outside of these times, strong scattered light signals are present when the Moon or Earth are near the camera fields of view.
    Anomalous effects On Camera 3, CCD 1, ouput Channel D (columns greater than 1580), a small change to the start of frame ringing (cf. TESS Instrument Handbook, Section 6.8.2) was observed at row numbers ≲750. The change starts at TJD=2475.22927 in orbit 93, and is restricted to orbit 93. The amplitude is very small, only 0.27 electrons per second, and is usually corrected at the flux time series level during background subtraction for individual targets. However, the effect is not removed by the calibration model and is visible in raw/calibrated pixels in this region of the detector. See the DRN for more information.
