Sector 33



Sector 33 Information

For full data release notes see: DRN49. For a list of TIC IDs with noted issues, see this list.

Updates:

  • As of Sector 30, co-trending basis vector (CBV) files only include the first eight principal components for the Single Scale co-trending mode.
  • As a reminder, the pipeline only uses the first eight CBVs for co-trending, because subsequent CBVs are usually dominated by stochastic noise. When using CBVs beyond 8, users should check for excess noise being introduced into the detrended light curve
  • In Sectors 30–33, the values for CBVs 9–16 are set to 0.

    • Sector Summary

  • Sector dates: December 18 2020 to January 13 2021
  • Pointing: Southern hemisphere
  • Days of Science Data Collection: 24.23
  • Days of Paused Data Collection: 1.57

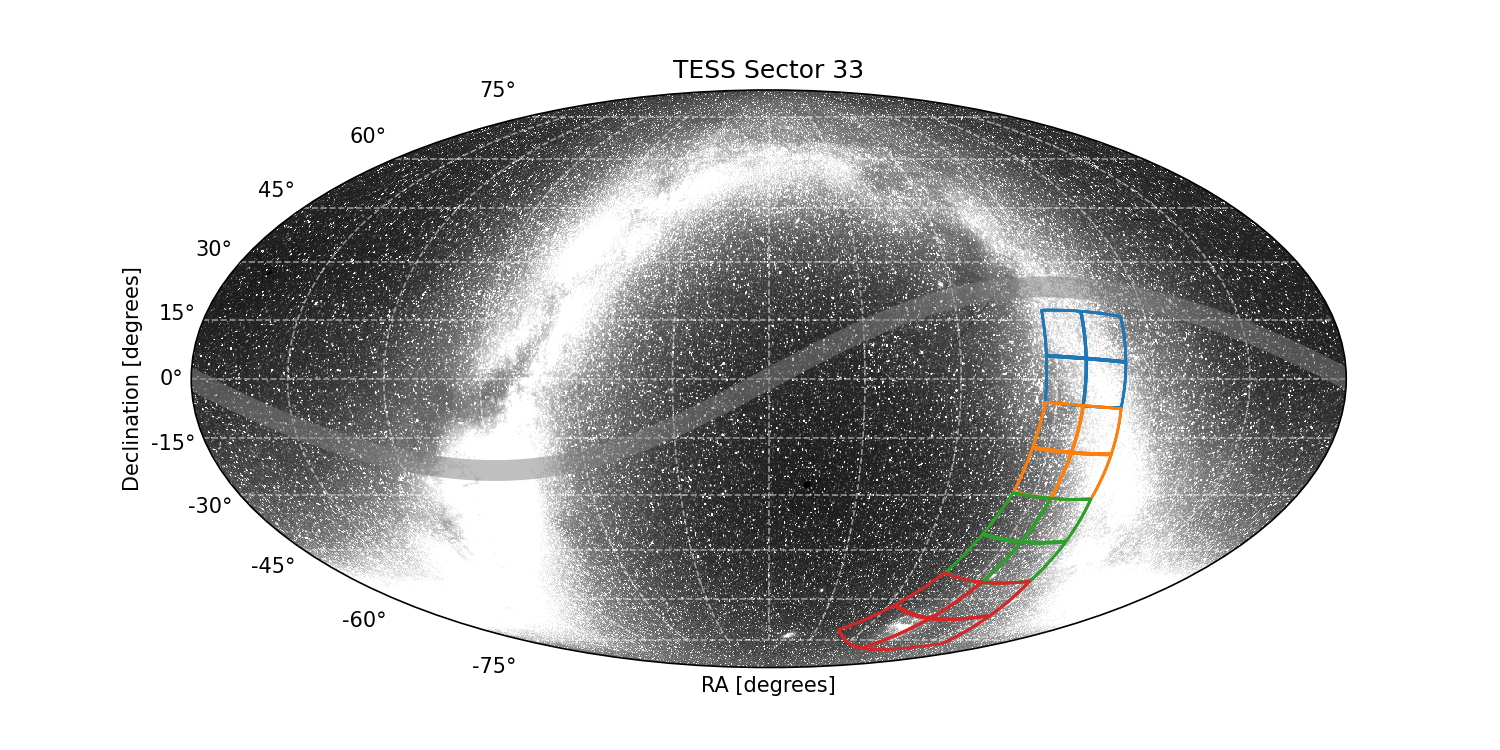

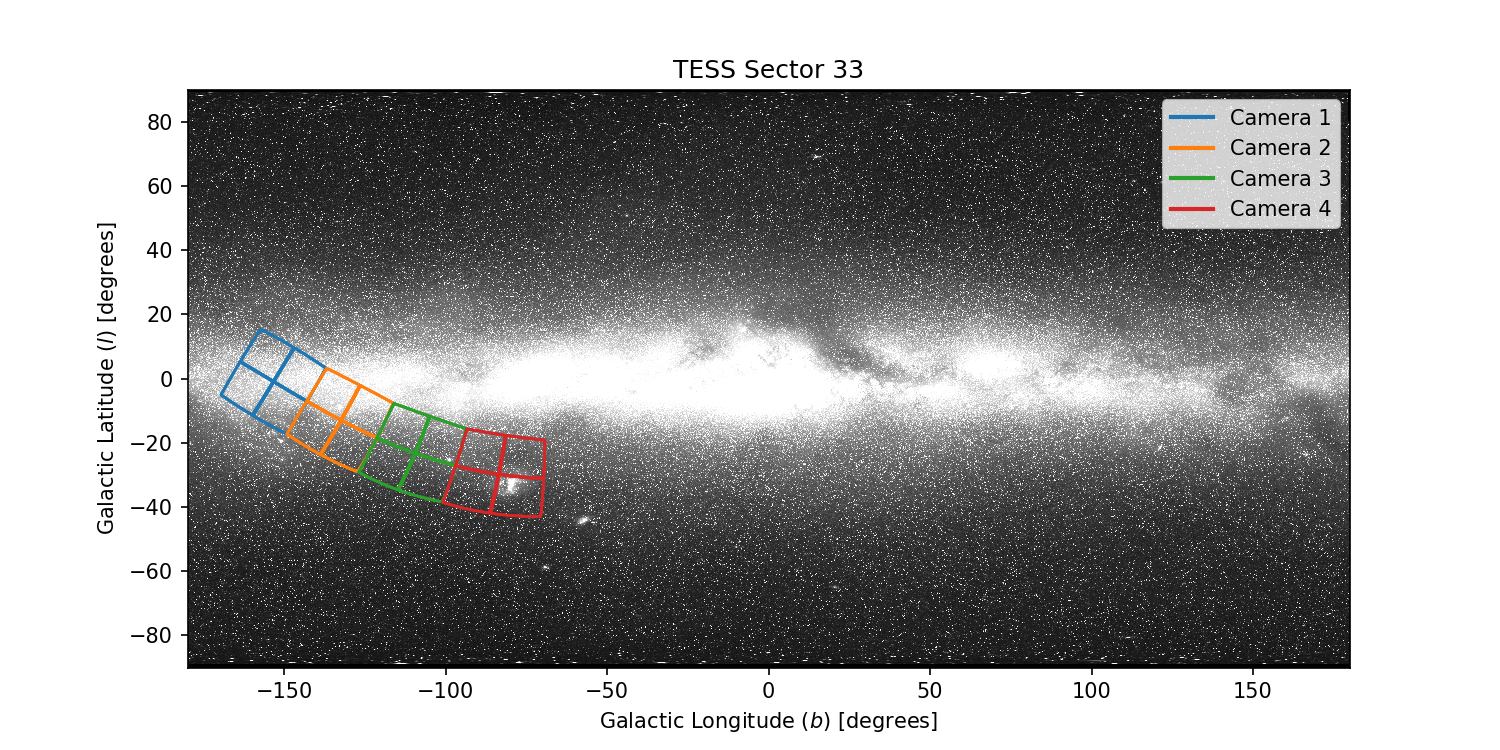

    • Spacecraft Pointing (deg)

    RA dec roll
    Spacecraft 96.6 -30.78 175.54

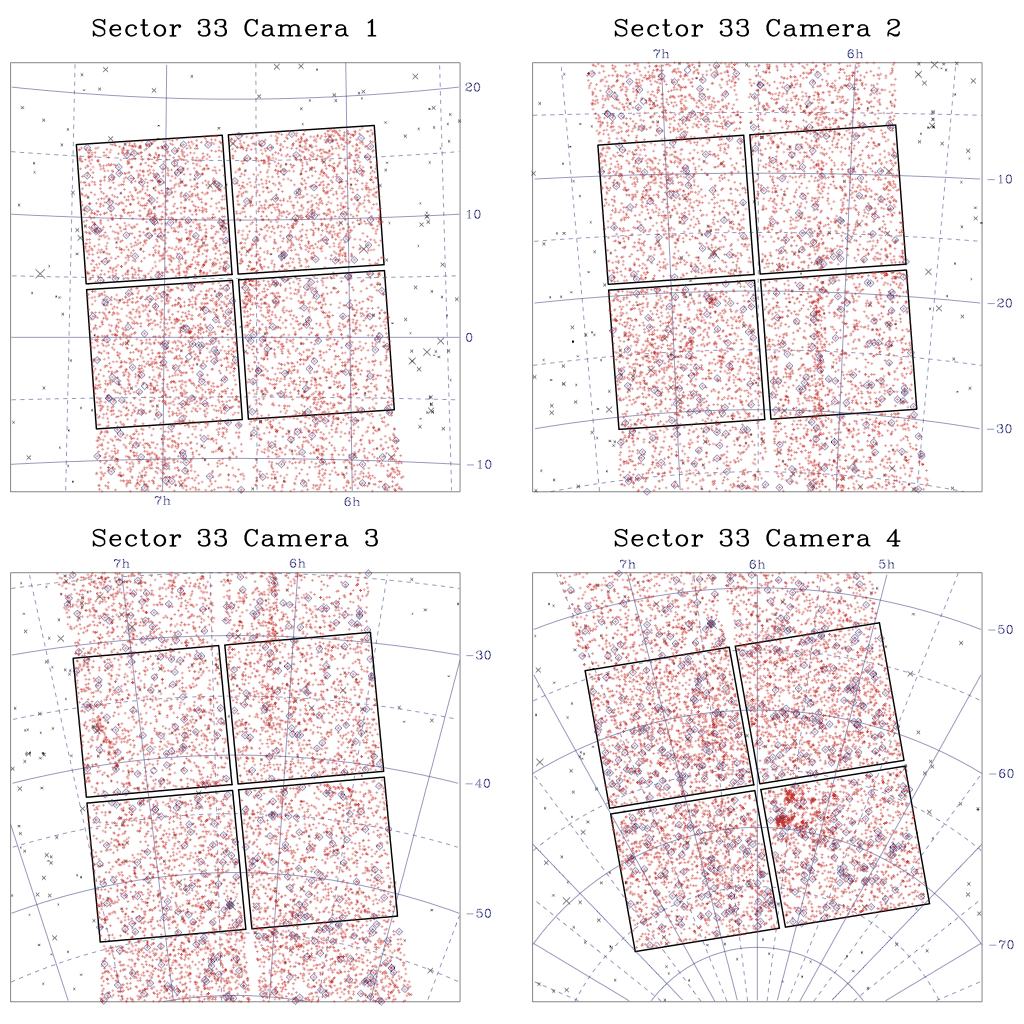

    Camera 1 99.23 5.13 266.15
    Camera 2 97.58 -18.82 265.95
    Camera 3 95.34 -42.74 84.78
    Camera 4 90.0 -66.56 80.32



    Orbit Summary

    Orbits Dates (UTC)

    Start - End

    		 Cadence #

    Start - End

    		 Momentum dumps
    73 2020-12-18 - 2020-12-30 701476 - 710214 1
    74 2020-12-31 - 2021-01-13 711341 - 7720084 1



    Sector Notes

    Noted Issue Description
    Scattered light In Sector 33, the Moon introduces a strong glint in Camera 1 at the end of orbit 73.
