Sector 25



Sector 25 Information

For full data release notes see: DRN36. For a list of TIC IDs with noted issues, see this list.

Sector Summary

  • Sector dates: May 14 to June 8 2020
  • Pointing: Northern hemispher
  • Days of Science Data Collection: 24.4
  • Days of Paused Data Collection: 1.28

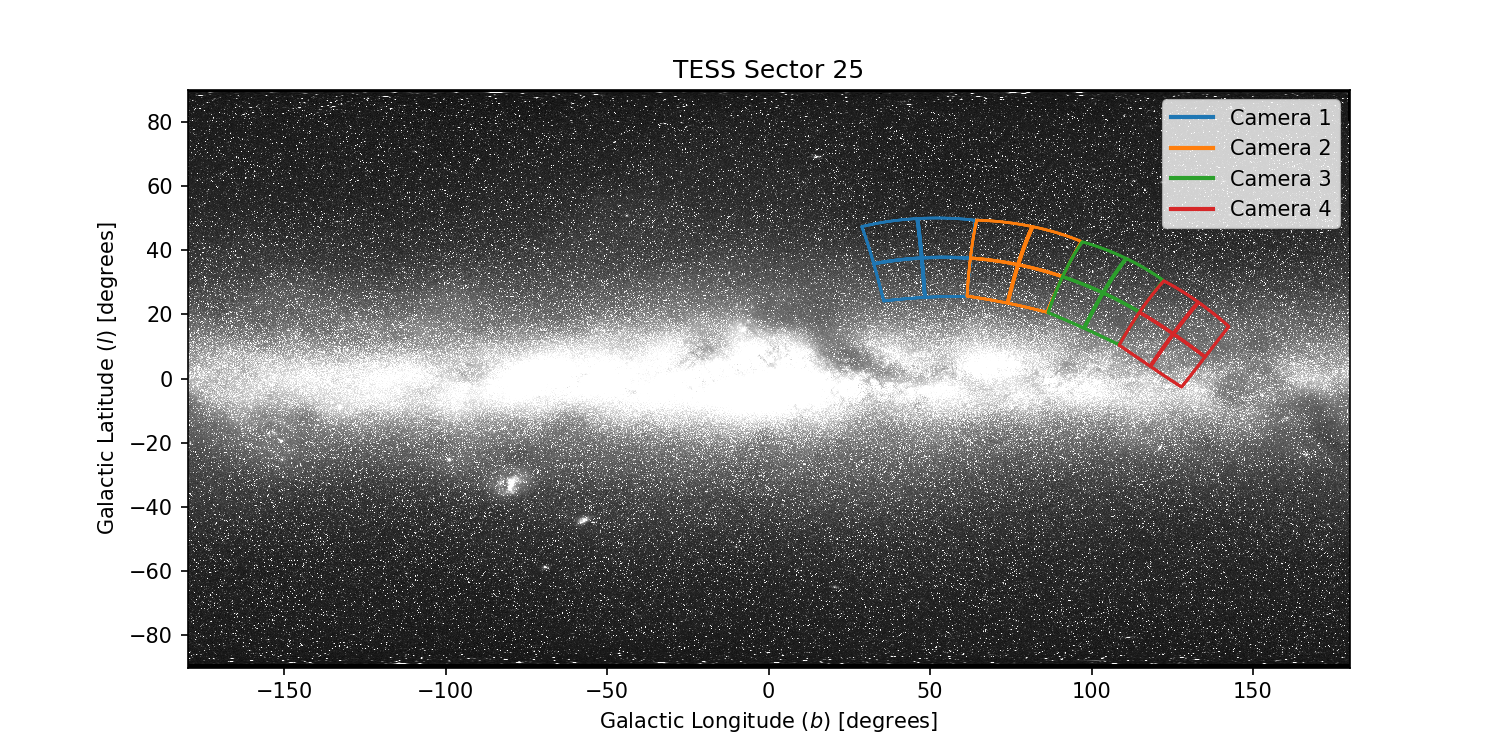

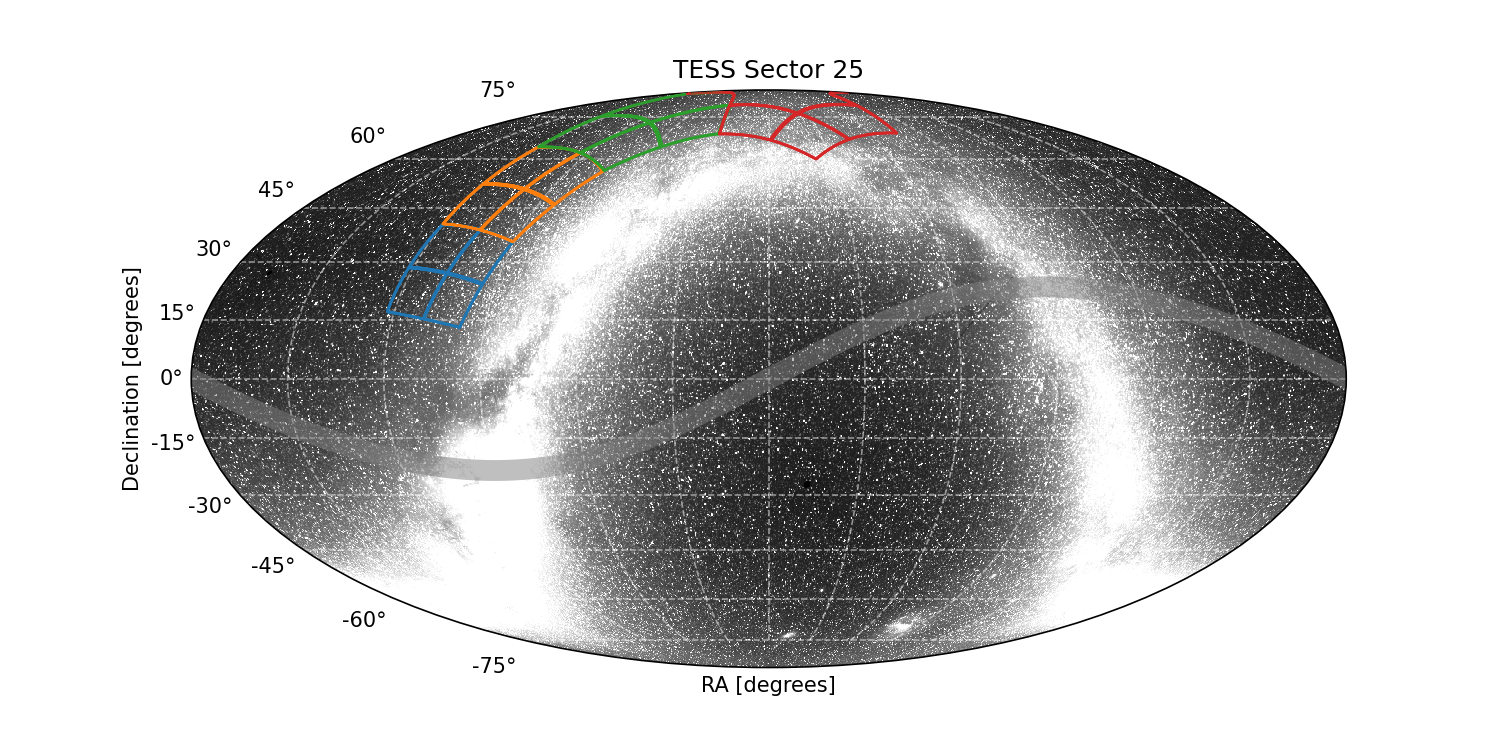

    • Spacecraft Pointing (deg)

    RA dec roll
    Spacecraft 265.61 61.94 339.53
    Camera 1 252.26 27.06 79.35
    Camera 2 259.05 50.49 75.01
    Camera 3 279.77 72.71 236.4
    Camera 4 22.74 76.64 135.42



    Orbit Summary

    Orbits Dates (UTC)

    Start - End

    		 Cadence #

    Start - End

    		 Momentum dumps
    57 2020-05-14 - 2020-05-26 544444 - 553089 1
    58 2020-05-27 - 2020-06-08 554009 - 562932 1



    Sector Notes

    Noted Issue Description
    Spacecraft pointing

    As in Sector 14, the pointing in Sector 25 was set at +85 degrees in ecliptic latitude so that Camera 2 and Camera 3 straddled the ecliptic pole.

    Camera 1 suffered from strong scattered light signals at the beginning of orbit 57 and orbit 58, and so Camera 4 alone was used for guiding during this sector.
    Scattered light In Sector 25, the Earth is a significant source of scattered light throughout both orbits.
